When installing LED strip lights, the connector is often overlooked—but it plays a critical role in electrical safety, lighting performance, and installation efficiency. Choosing the right strip light connector ensures stable power delivery, consistent brightness, and long-term reliability.
As a professional manufacturer of LED connectors and wiring solutions, we’ve prepared this comprehensive guide to help you select the most suitable connector for your LED strip lighting project.
1. Why LED Strip Connectors Matter
LED strip projects typically involve cutting, extending, splitting, bending, and connecting to power supplies. A proper connector ensures:
– Stable and safe electrical contact
– Fast installation without soldering
– Lower maintenance costs
– Cleaner wiring and professional appearance
– Support for different voltages (12V / 24V / 48V)
This is why choosing the right connector is crucial before starting the installation.
2. Four Key Parameters to Confirm Before Selecting a Connector
1. Strip Light Type: Single Color, RGB, RGBW, or COB
Different strip types require different pin configurations:
– Single Color: 2-Pin
– RGB: 4-Pin
– RGBW: 5-Pin
– COB Strip: Requires precision piercing terminals or special COB connectors
2. Strip Width
Common widths: 8mm, 10mm, 12mm, 14mm, 20mm(high-power strips)
The connector must match the strip width to ensure firm contact.
3. Waterproof or Non-Waterproof (IP65 / IP67)
Waterproof LED strips require waterproof connectors such as:
– Waterproof snap-type connectors
– Single Color: 2-Pin
– Waterproof male/female cable sets (2-Pin / 3-Pin / 4-Pin)
Standard connectors cannot fit coated or silicone-encased LED strips.
4. Current Rating
High-power strips (10W/m, 15W/m, 20W/m+) require:
-Thicker terminals
– Larger gauge wires (18AWG / 20AWG)
This prevents overheating or burning during long-term use.
3. Common Types of LED Strip Light Connectors

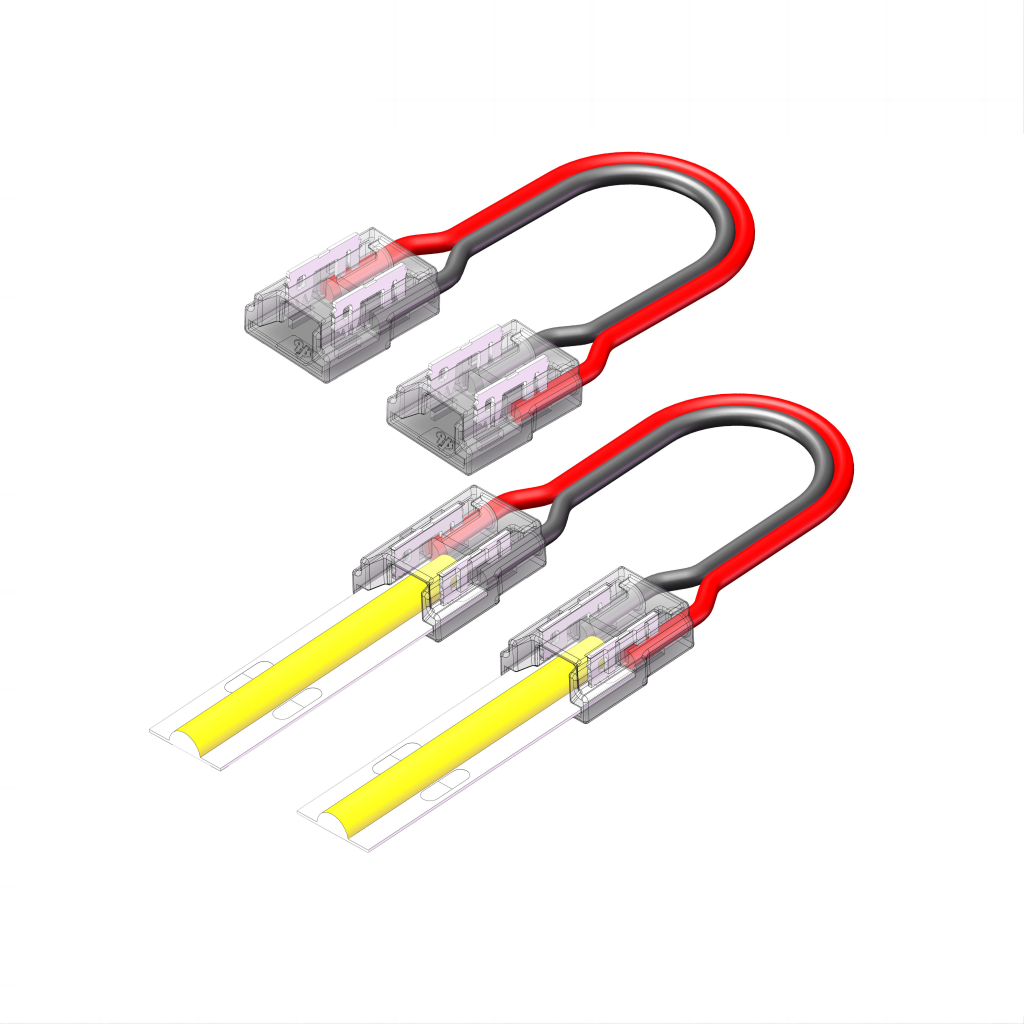

1. Solderless Snap Connectors
-Ideal for fast installation
-Compatible with 8mm / 10mm / 12mm strips
-Available in straight, L-shape, extension, and splice versions
2. Puncture/Piercing Connectors
-Strong electrical performance
-Suitable for COB and ultra-thin strips
-Great for factory production lines

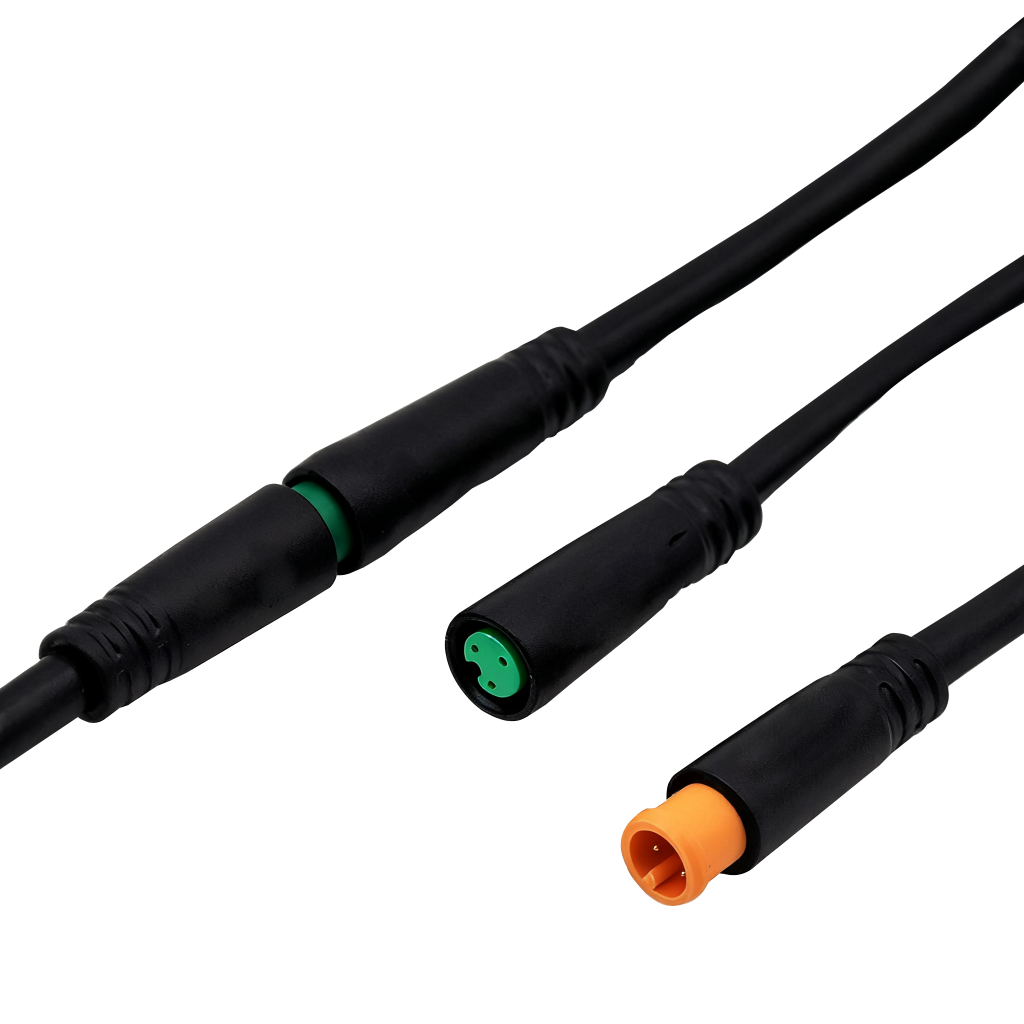

3. Waterproof Connectors (IP67 / IP68)
-Used for outdoor strips, landscape lighting, signs
-Multiple pin options: 2-Pin / 3-Pin / 4-Pin / 5-Pin

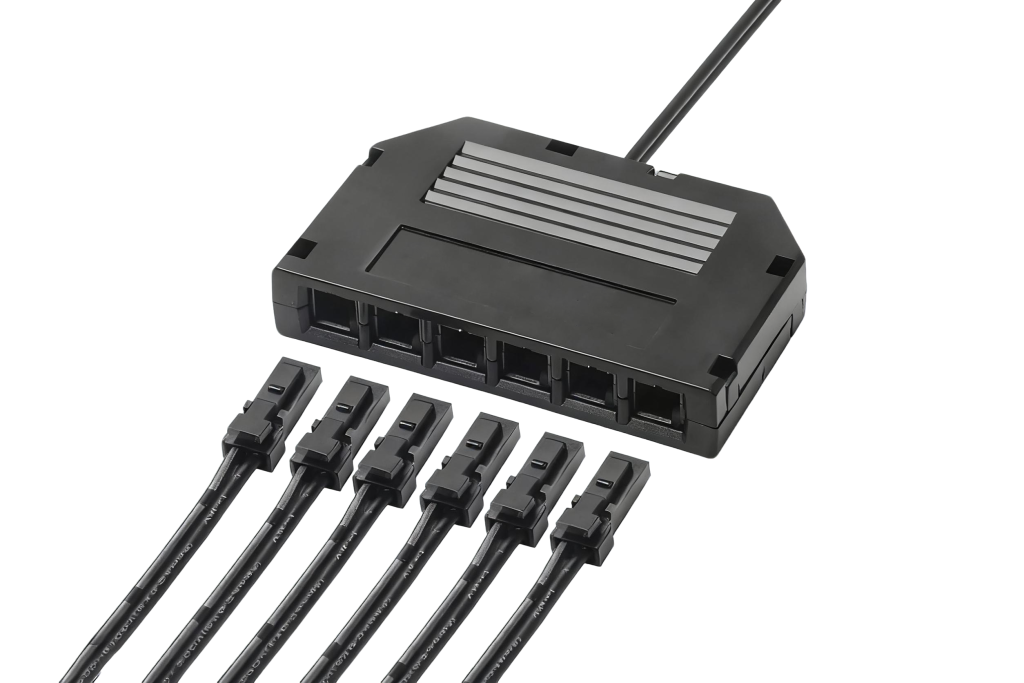

4. Junction Box / Splitter Connectors
-Used for powering multiple strips at once
-Available in 1-to-2, 1-to-3, 1-to-4 output types
-Popular for cabinet lighting and commercial lighting projects
4. How to Choose the Right Connector for Different Applications
1. Home Ambient Lighting (TV backlight, bed lighting)
-Basic 2-Pin solderless connectors are sufficient
-Low-power and easy to install
2. Cabinet Lighting / Display Shelves / Retail Lighting
-Splitter connectors improve wiring efficiency
-Prefer durable and anti-loose designs
3. Outdoor LED Strips (IP65/IP67)
-Must use waterproof connectors
-Waterproof rings ensure no moisture enters
4. High-Power Strip Lights (20W/m and above)
-Require higher current-rated connectors
-Piercing or soldered connectors recommended
5. How to Identify a High-Quality LED Strip Connector
Evaluate the connector using these five criteria:
1. Reinforced, tin-plated copper terminals: Prevent oxidation and ensure stable conductivity.
2. Flame-retardant housing material: Preferably UL94V-0 rated for safety.
3. Secure locking structure: Should not loosen when pulled lightly.
4. Correct wire gauge: Thicker wires (smaller AWG number) carry larger currents.
5. Product testing: Including pull test, current test, heat resistance, etc.
6. How to Identify a High-Quality LED Strip Connector
Before selecting the connector, always confirm:
-What type and width of LED strip do you have?
-Is the strip waterproof?
-What is the voltage and power?
-Is it a home installation or an engineering project?
Once these key points are clear, choosing the right connector becomes easy—and you avoid issues like flickering, poor contact, or overheating.
