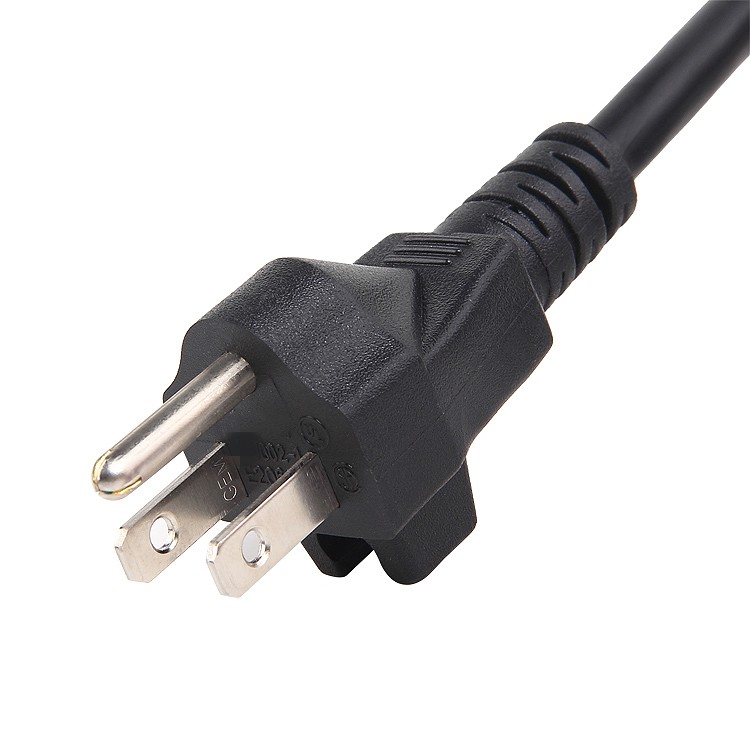

UL Certification Household Appliance Electrical Power Extension Cord

Quick Details
Place of Origin:Guangdong, China
Brand Name:BOH
Model Number:W002-1
Type:AC Power Cord, AC Power Cord
Application:COMPUTER
Male End Type:NEMA
Female End Type:IEC
Product name:US power cord
Color:Black/White
Customized:Accept
Conductor:18AWG/16AWG/14AWG
Material:Copper
O.D:7.8mm
Jacket:PVC
Meters:1.2M /1.5M / 1.83M
Certification:UL

Specifications

LABEL VALUE
Connector Standard: NEMA 1-15P CSA CAN/CSA-22.2 No.21-95
Maximum Current rating: 10A, 13A, 15A
Maximum Voltage: 125V
Number of Poles and Wires:  poles, 3 wires
Copper Conductor Material: Oxygen free Copper (OFCU)
Outer Jacket Material: PVC, Rubber, Halogen-Free, Textile braid
Blade Material: Nickel coated Brass
Flamability Rating: UL 94V-0
Color: Black/White/other
Temperature Rating: -40℃ ~+75℃
Approvals: UL
Environmental Certifications: RoHS, REACH, PAHs
Testing: Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
Country of Origin: Made In China
Packing: Standard Export Carton

Available Wire Styles

Gauge/ # Conductors Cord Type
3Cx18AWG, 3Cx16AWG SPT-2, SPT-3
3Cx18AWG, 3Cx16AWG HPN
3Cx18AWG SVT, SVTO, SVTOO
3Cx18AWG, 3Cx16AWG, 3Cx14AWG, 3CX12AWG SPT-3, SJT, SJTO, SJTW, SJTOO, SJTOW, SJTOOW
