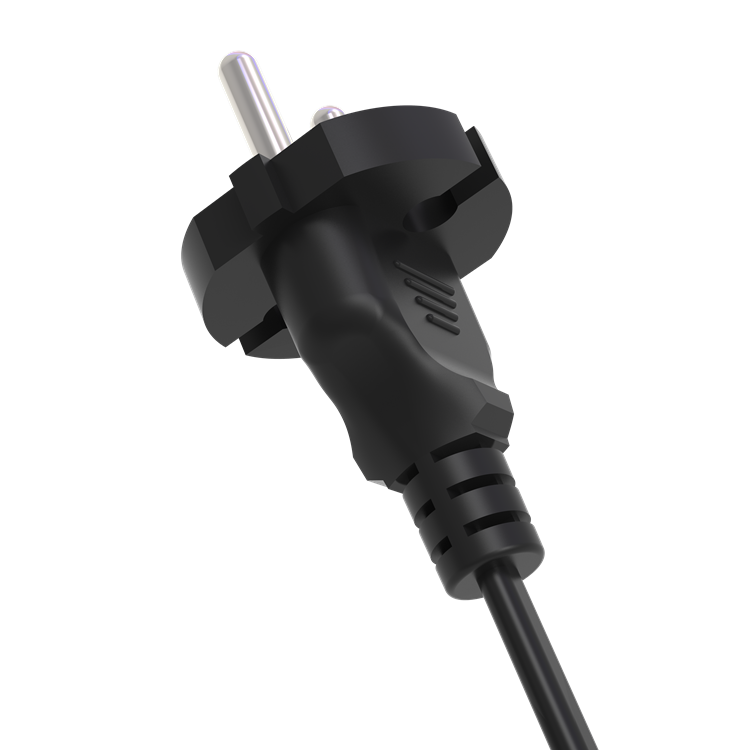

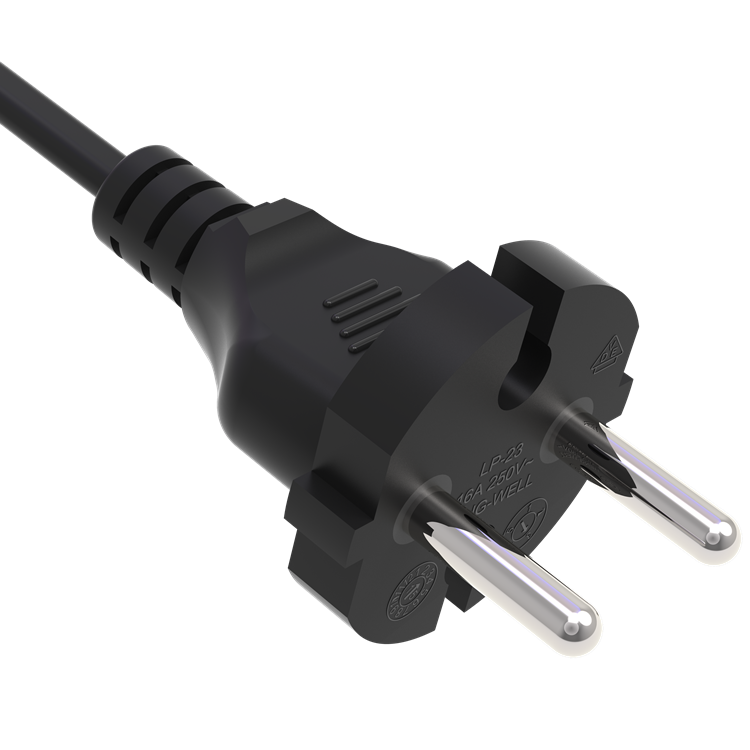

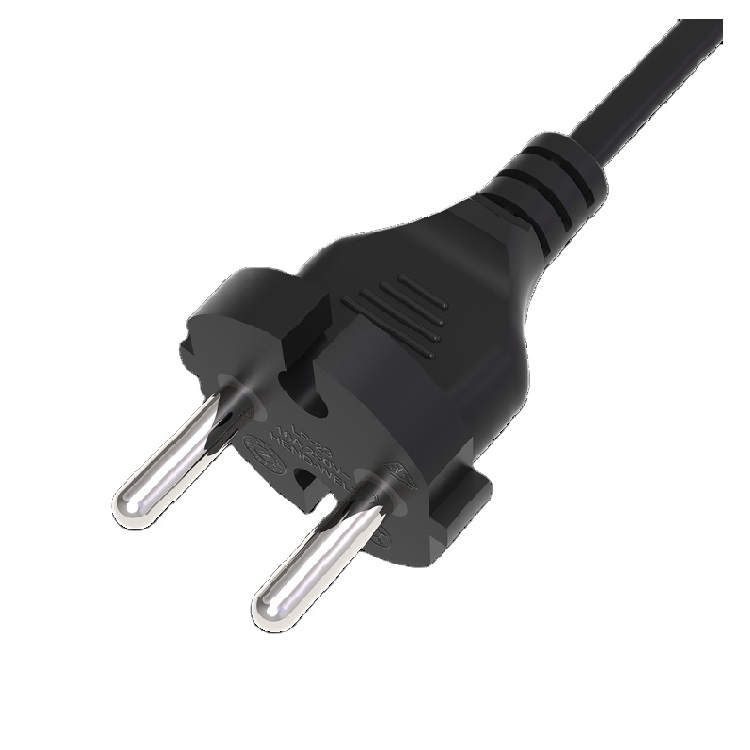

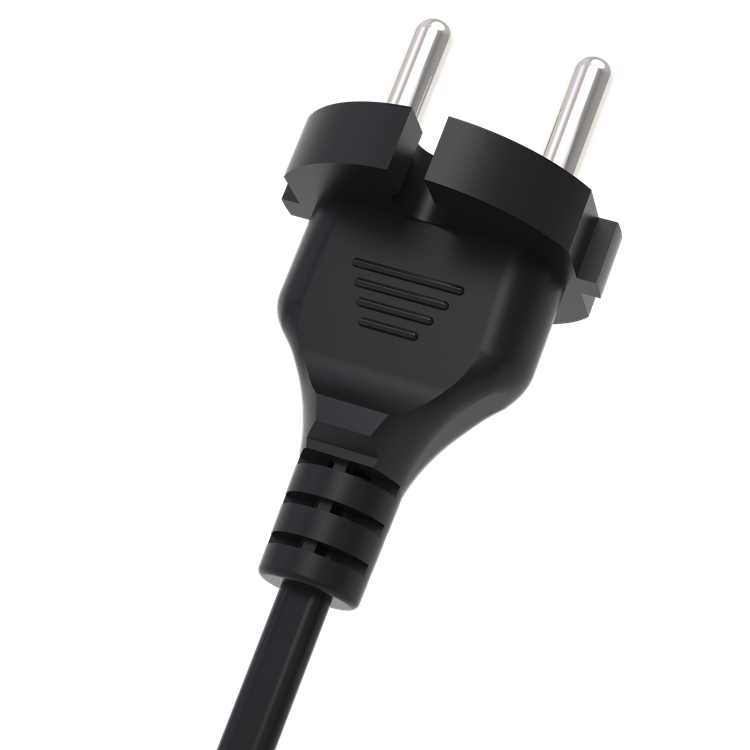

CEE7 standard sheet XVII (CEE7/17) Europe Power Cords

Quick Details
Place of Origin:Guangdong, China
Brand Name:BOH
Model Number:LP23
Type:AC Power Cord, AC Power Cord
Application:Home Appliance
Male End Type:IEC
Female End Type:IEC
Product name:EU Power Cord
Color:Black
Customized:Accept
Certification:VDE
Length:1.2M/1.5M/1.8M/2M/3M(OEM)
Material:Copper
Plug:2 Pin
Jacket:PVC Power Cord
Conductor:0.75mm2 1.0mm2 1.5mm2

Specifications

LABEL VALUE
Connector Standard: CEE 7/7
Maximum Current rating: 16A
Maximum Voltage: 250V
Number of Poles and Wires: 2 poles, 2 wires
Copper Conductor Material: Oxygen free Copper (OFCU)
Outer Jacket Material: PVC, Rubber, Halogen-Free, Textile braid
Blade Material: Nickel coated Brass
Flamability Rating: UL 94V-0
Color: Black/White/other
Temperature Rating: -40℃ ~+75℃
Approvals: VDE, TUV, KEMA, OVE, N, S, FI, D, CEBEC
Environmental Certifications: RoHS, REACH, PAHs
Testing: Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
Country of Origin: Made In China
Packing: Standard Export Carton

Available Wire Styles

Gauge/ # Conductors Cord Type
2×0.5mm² H03VV-F, H03VVH2-F
2×0.75mm² H03VV-F, H03VVH2-F, H05VV-F, H05VVH2-F, H05RR-F, H05RN-F
2×1.0mm² H05VV-F, H05VV-F, H05RR-F, H05RN-F, H03RT-F
2×1.5mm² H05VV-F, H05VV-F, H05RR-F, H05RN-F, H07RN-F, H03RT-F
