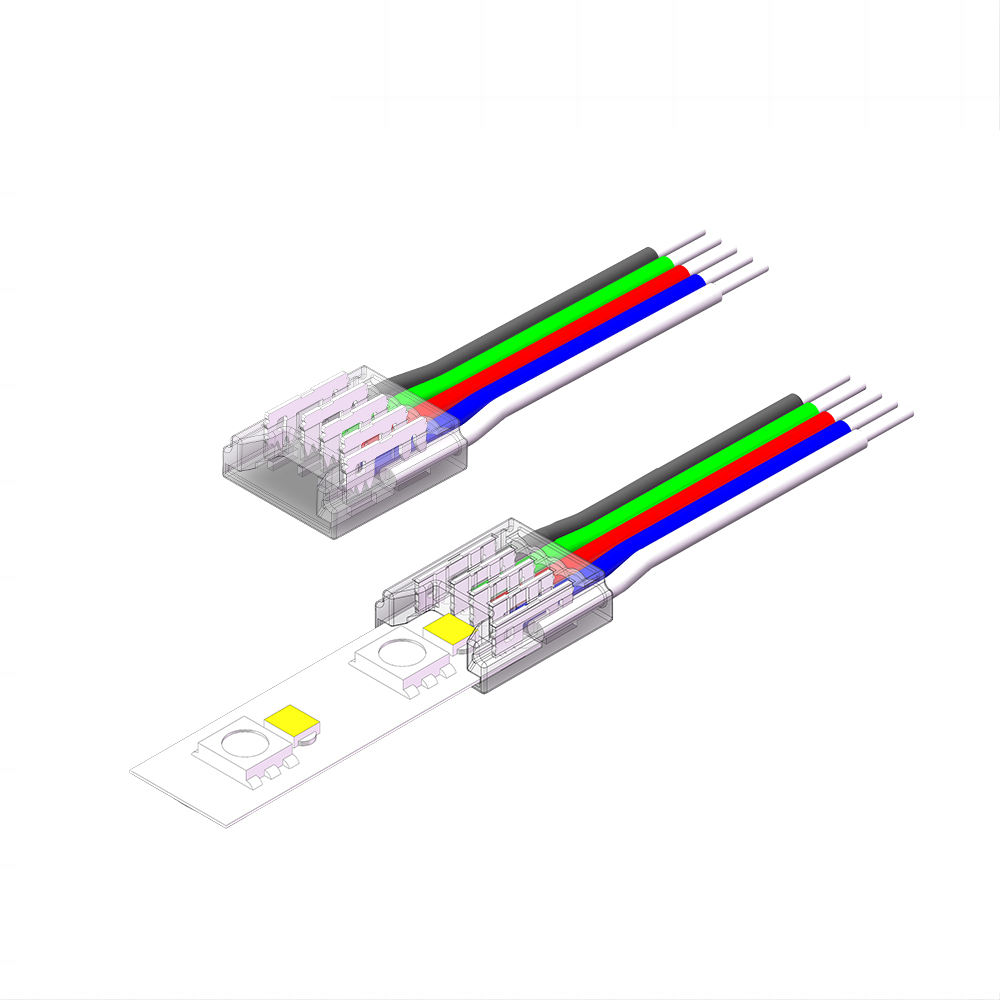

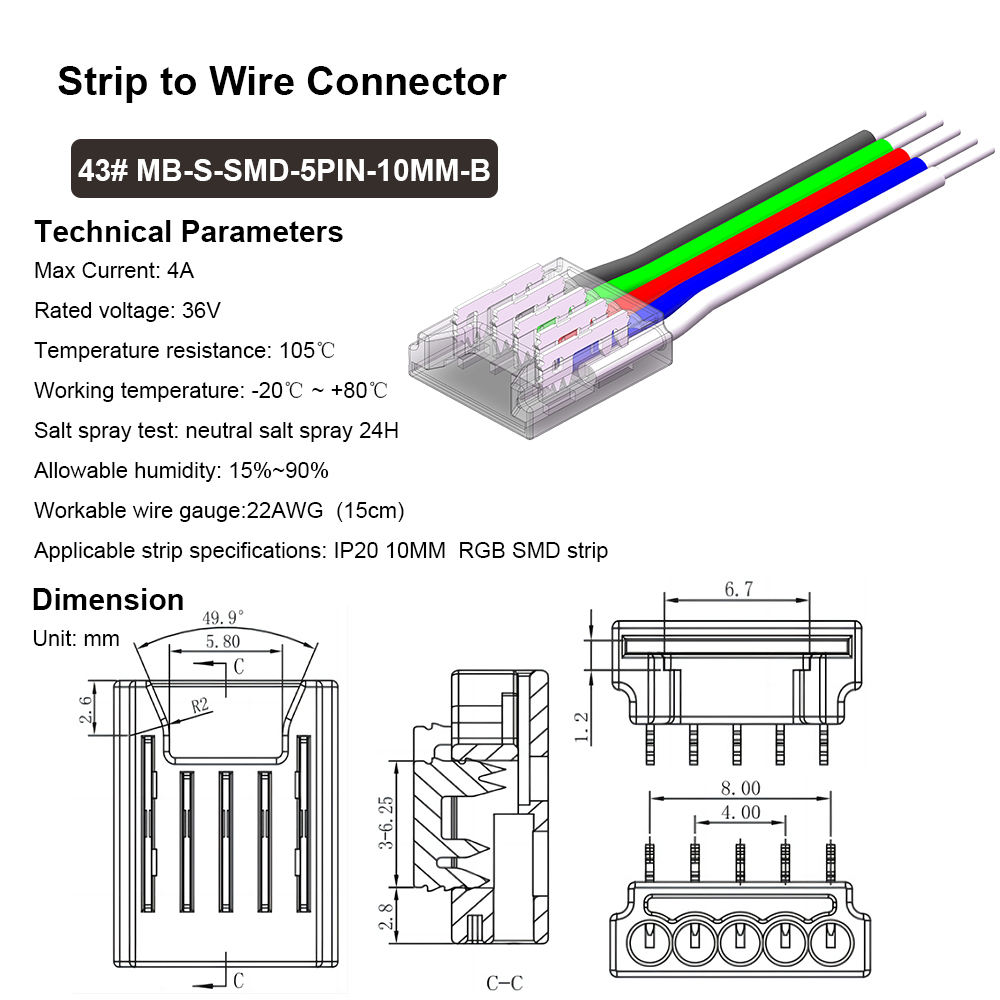

5 Pin 10mm SMD Strip Connectors
Product Details:
10mm SMD Strip Connectors
Connector Type : Strip to Wire
IP Rating: IP20
Connector: 10mm
Length: Customized
Pins: 5Pin
Wire: UL Wire
|
Product Name
|
5 Pin 10mm SMD Strip Connectors
|
|||
|
Logo/New Moulds
|
Available, according to customer’s demands
|
|||
|
Packaging
|
Normal Bag, Carton and Customized packaging acceptable
|
|||
|
Rated Current
|
4A
|
|||
|
Max Rated voltage
|
5V/9V/12V/18V/24V/36V
|
|||
|
Withstand voltage
|
500V
|
|||
|
Temperature resistance
|
80℃
|
|||
|
Working temperature
|
-20℃ ~ +80℃
|
|||
|
Salt spray test
|
neutral salt spray 24H
|
|||
|
Allowable humidity
|
15%~90%
|
|||
|
Applicable strip specifications
|
IP20 SMD
|
|||
